Understanding Guniting in Construction

[edit] Durable Concrete Repair

Guniting as a term comes from an original product name known as Gunite, which was a dry-mix pneumatic concrete spraying process trademarked in the early 1900s. Today, the term most commonly used is shotcreting, spray applied concrete or sprayed concrete, but guniting is still used in many parts of the world. Other products can also be spray applied such as gypsum based plaster, lime based plaster, external render, insulation, hemcrete and so on. See articles shotcrete technology, spray foam insulation, thermal spray coating, polyurethane spray foam in structurally insulated panels and composite structures, hemcrete, and prayed in situ concrete.

In structural rehabilitation and specialised concrete works, guniting stands out as a precision-driven technique used to restore, strengthen, and protect deteriorated concrete surfaces. Unlike conventional plastering or casting methods, guniting relies on high-velocity pneumatic placement, which significantly enhances compaction, bond strength, and durability.

For contractors, consultants, and infrastructure owners searching for “guniting process”, “guniting technical details”, or “dry shotcrete method”, this is a guide to share practical engineering insight, not surface-level theory.

[edit] What is Guniting?

Guniting is a dry-mix sprayed concrete process in which a pre-blended mixture of cement and fine aggregates is conveyed through a hose using compressed air, while water is introduced at the nozzle to initiate hydration before impact on the substrate.

Core Technical Principle:

• Kinetic energy + controlled hydration = dense, low-permeability concrete layer

This results in:

• High interfacial bond strength
• Reduced void ratio
• Improved durability under aggressive exposure conditions

[edit] Working Mechanism - How Guniting Achieves Strength?

The performance of guniting is governed by three engineering phenomena:

1. Impact Compaction

Material exits the nozzle at high velocity (~30-100 m/s), creating self-compaction without vibration.

2. Layer-by-Layer Build-Up

Concrete is deposited in thin passes, minimizing:

• Shrinkage cracking
• Thermal stress buildup

3. Reduced Water-Cement Ratio

Typical W/C ratio: 0.30-0.40, leading to:

• Higher compressive strength
• Lower permeability

[edit] Guniting Process: Step-by-Step Technical Execution

1. Substrate Preparation

Critical for bond performance:

• Mechanical roughening (≥5 mm amplitude recommended)
• Removal of laitance and contaminants
• Exposure of coarse aggregates for mechanical interlock

2. Pre-Wetting

Surface is brought to SSD (Saturated Surface Dry) condition to prevent:

• Rapid water absorption
• Weak bonding interface

3. Dry Mix Feeding

• Cement:sand ratio typically 1:3 to 1:4
• Uniform grading (Zone II sand preferred)
• Controlled feed rate ensures consistent output

4. Air Conveyance System

• Compressor pressure: 5-7 bar
• Ensures continuous flow and prevents segregation

5. Nozzle Hydration Control

• Water ring system regulates flow
• Nozzleman adjusts based on:
  • Surface absorption
  • Ambient temperature
  • Desired consistency

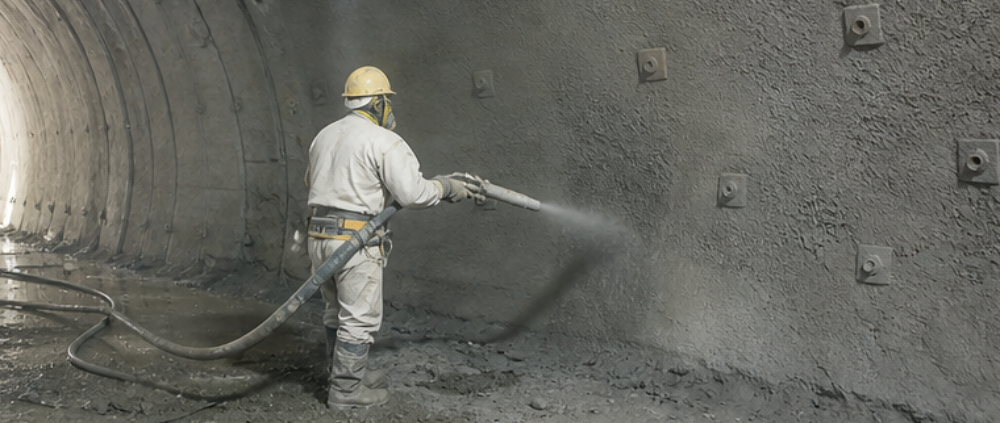

6. Spraying Technique

• Nozzle angle: perpendicular (90°) for maximum compaction
• Distance: 0.6-1.2 meters
• Circular motion to avoid shadowing and rebound pockets

7. Rebound Management

• Rebound (10-30%) must be removed
• Reused rebound is strictly avoided (affects strength)

8. Curing Regime

• Moist curing: minimum 7 days
• Prevents plastic shrinkage and ensures hydration

[edit] Key Technical Properties of Guniting

These properties make guniting suitable for structural-grade applications, not just surface repair.

[edit] Materials and Admixtures in Guniting

[edit] Cementitious System

• OPC 43/53 grade
• Microfine cement for repair zones

[edit] Aggregates

• Max size: 4.75-10 mm
• Well-graded to reduce voids

[edit] Chemical Admixtures

• Accelerators → Faster setting in overhead works
• Plasticizers → Improved workability at low W/C ratio
• Silica fume → Enhances density and durability

[edit] Fiber Reinforcement (Advanced Use)

• Steel or polypropylene fibers
• Improves:
  • Crack resistance
  • Impact strength

[edit] Applications of Guniting

[edit] Structural Repair

• Spalled concrete restoration
• Beam-column strengthening
• Bridge substructure repair

[edit] Underground & Infrastructure

• Tunnel linings
• Mining support systems
• Retaining structures

[edit] Hydraulic Structures

• Water tanks
• Canal linings
• Dams

[edit] Geotechnical Engineering

• Slope stabilization
• Rock face protection

[edit]

[edit] Advantages of Guniting

1. Superior Bonding Mechanism

High-velocity placement creates strong mechanical interlock + adhesive bond.

2. No Formwork Requirement

Reduces:

• Construction time
• Labor cost

3. High Durability

Low permeability → better resistance to:

• Chloride ingress
• Sulphate attack

4. Adaptability

Effective on:

• Vertical surfaces
• Overhead applications
• Irregular geometries

5. Structural Strengthening Capability

Unlike plastering, guniting contributes to load-bearing capacity.

Limitations and Practical Challenges

• Requires highly skilled nozzleman (critical success factor)
• Dust generation in dry process
• Material rebound → wastage
• Thickness control can be challenging
• Not ideal for very thick sections in one pass

[edit] Quality Control Checklist

To ensure high-performance output:

✔ Check air pressure consistency
✔ Maintain correct W/C ratio at nozzle
✔ Avoid rebound reuse
✔ Ensure proper curing
✔ Conduct:

• Cube strength tests
• Pull-off bond tests

[edit] When to Choose Guniting Over Other Methods?

Use guniting when:

• Surface is irregular or inaccessible
• Formwork installation is impractical
• Rapid repair is required
• High bond strength is critical

Avoid when:

• Large-volume casting is needed
• Skilled labor is unavailable

[edit] Conclusion

Guniting is not just a repair technique; it is a precision-engineered concrete placement method that delivers high strength, durability, and adaptability in challenging construction scenarios. When executed with proper technical control, it becomes one of the most reliable solutions for structural rehabilitation and protective concrete works.

For modern infrastructure demands, mastering guniting means achieving long-term performance with minimal intervention.

[edit] FAQs

• === What is guniting used for in construction? : It is used for concrete repair, slope stabilization, tunnel lining, and waterproofing applications. ===
• === Is guniting strong enough for structural repair? : Yes, it can achieve compressive strength up to 70 MPa, making it suitable for structural strengthening. ===
• === What is rebound loss in guniting? : Rebound refers to material that bounces off the surface during spraying and should not be reused. ===
• === What is the ideal water-cement ratio in guniting? : Typically between 0.30 to 0.40 for optimal strength and durability. ===
• === Why is skilled labor important in guniting? : Because nozzle control directly affects strength, bonding, and uniformity. ===

--Gubbicivil
