[edit] Introduction

Water ingress through tiled roofs and terraces can damage internal finishes, insulation, structural components and building services. Although some leaks can be repaired without removing existing tiles, the appropriate method depends on the roof construction, the condition of the tiles and underlying waterproofing, and the cause of the water ingress. Localised repairs or surface treatments may be suitable in some circumstances, but they cannot reliably resolve every type of roof leakage.

An effective repair begins with identifying the source of the water ingress and assessing the condition of the roof. Applying a waterproof coating without addressing defective joints, damaged tiles, inadequate drainage or a failed underlying membrane may provide only temporary relief.

[edit] Causes and signs of leakage in tiled roofs

Roof tiles provide the primary weathering layer on many pitched roofs, while tiled terraces may incorporate a separate waterproofing layer beneath the surface finish. Neither arrangement should be assumed to be watertight solely because the tiles are intact. Water can enter through damaged tiles, defective flashings, poorly detailed junctions, open joints, penetrations or failures in the underlying waterproofing.

Common causes of leakage include:

Cracked, displaced or missing tiles.
Deteriorated grout or sealant around joints and penetrations.
Defective flashings at abutments, chimneys and other junctions.
Cracks in the supporting concrete slab or screed.
Deterioration of the underlying waterproofing membrane.
Defective pipework or service penetrations.
Blocked outlets, gutters or downpipes.
Inadequate falls or local depressions that allow water to pond.
Movement at joints between different building elements.

Signs of water ingress may include damp patches, water staining, peeling paint, mould growth and dripping during or after rainfall. The point at which water appears internally may be some distance from the point where it enters the roof. Condensation and leaking pipework can also produce similar symptoms and should be considered during the investigation.

[edit] Waterproofing methods that may avoid tile removal

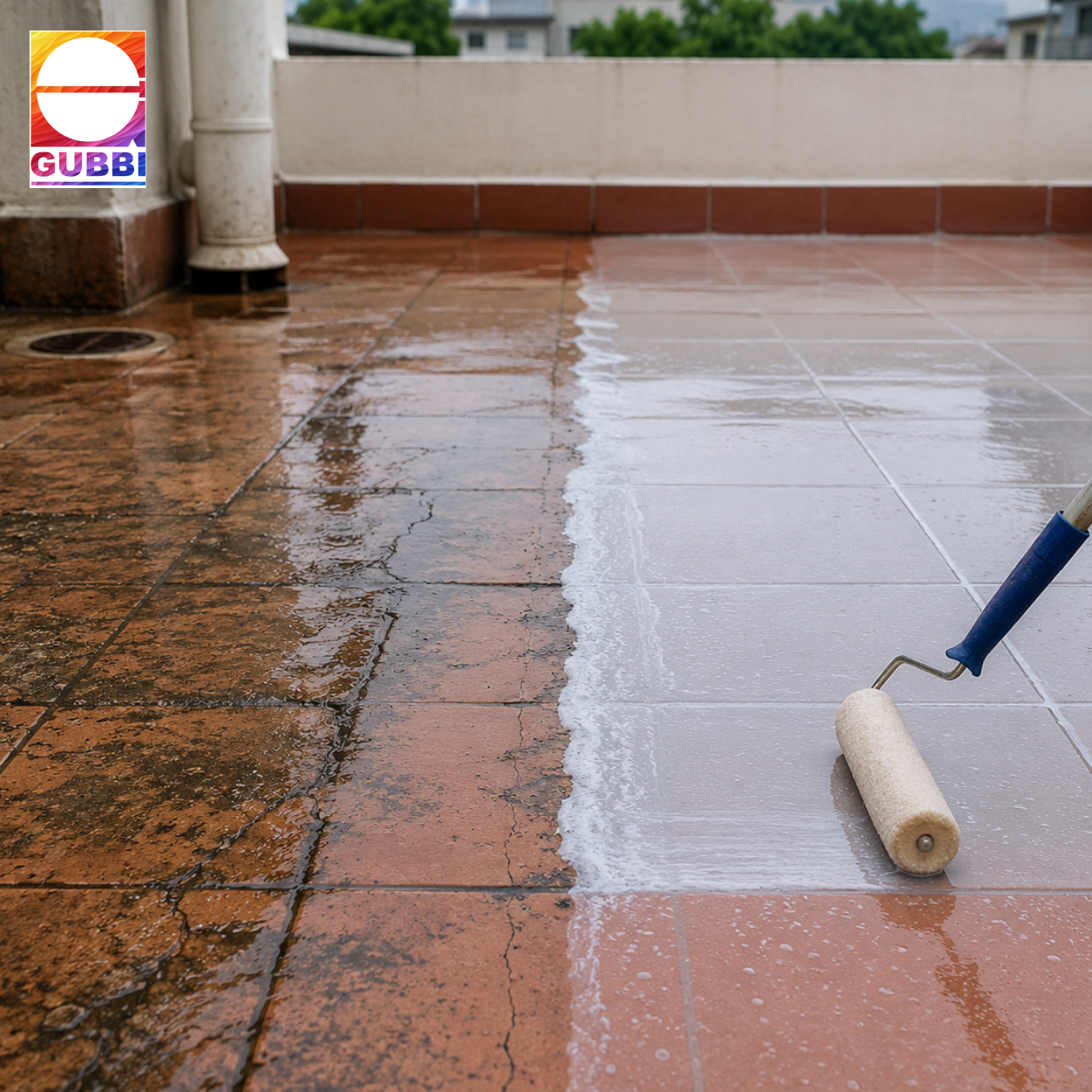

[edit] Transparent waterproof coatings

Transparent coatings are intended to reduce water penetration through compatible tile surfaces and joints while retaining the appearance of the existing finish. Their suitability depends on the tile material, surface condition, joint construction, exposure and the properties of the coating.

The surface generally needs to be clean, sound and sufficiently dry for the selected product. Coatings should not be assumed to bridge significant cracks, compensate for loose tiles or replace a failed waterproofing membrane. Their performance and expected service life depend on the system specification, preparation, application and subsequent maintenance.

[edit] Polyurethane coatings

Liquid-applied polyurethane waterproofing systems can form a flexible membrane capable of accommodating limited movement when correctly specified and installed. They may be suitable for certain roof terraces and other surfaces, subject to compatibility with the substrate and existing finishes.

Application over existing tiles is not appropriate for every system. Adhesion, surface preparation, joint detailing, ultraviolet exposure, water ponding and the need for a protective finish should be assessed. Where a system requires direct application to a sound substrate, the existing tiles may need to be removed.

[edit] Tile joint and crack repairs

Where water ingress is traced to localised defects, repairing joints or cracks may be sufficient. Work can include removing loose or deteriorated joint material, replacing defective sealants, repairing cracks with a compatible material and renewing defective flashings or seals around penetrations.

The repair method must suit the type of joint and the movement expected. Rigid fillers may be unsuitable where thermal or structural movement occurs. Repointing or sealing joints will not resolve leakage caused by defects elsewhere in the roof construction.

[edit] Injection grouting

Injection grouting involves introducing a suitable grout or resin into cracks, joints or voids through which water is travelling. Depending on the material and application, the injected product may seal a water pathway or fill a localised defect in the substrate.

The method may be suitable for certain cracks in concrete slabs and other structures, but it is not a universal substitute for repairing roof waterproofing. The cause and extent of cracking must be assessed, particularly where cracks may indicate structural movement or deterioration. Injection work should be designed and carried out using materials appropriate to the substrate, moisture conditions and required performance.

[edit] Waterproofing membranes over existing tiles

In some cases, a new liquid-applied or sheet waterproofing system can be installed over an existing tiled surface, provided the system is specifically designed for that application. The existing finish must be sufficiently stable, and the proposed build-up must accommodate changes in levels, drainage, thresholds and junction details.

A new membrane over tiles may increase finished surface levels and affect door thresholds, drainage outlets and adjoining construction. The suitability of the arrangement should therefore be assessed before work begins. Where the existing waterproofing has failed extensively, the tiles are loose, or the underlying construction is damaged, removing the surface finish may be necessary to inspect and repair the substrate.

[edit] Areas requiring particular attention

Waterproofing repairs need to address junctions and details as well as the main roof surface. Commonly vulnerable areas include:

Pipe and service penetrations, where gaps or defective seals can allow water to enter.
Parapet walls and upstands, particularly at junctions with roof slabs and waterproofing membranes.
Roof outlets, gutters and drainage channels, where blockages or poor detailing can cause ponding or overflow.
Movement and expansion joints, which require materials and details capable of accommodating the anticipated movement.
Abutments, chimneys, rooflights and changes in roof level, where flashings and membrane terminations must be correctly detailed.

Drainage should be checked as part of the investigation. Persistent ponding can increase the demands on a waterproofing system and may indicate inadequate falls, blocked outlets or local depressions. Applying a coating without correcting the underlying drainage problem may not provide a durable repair.

[edit] Benefits and limitations of avoiding tile removal

Retaining existing tiles can reduce demolition, waste disposal, labour and disruption. It may also preserve a finished surface and shorten the repair period where defects are localised and the existing construction remains sound.

However, avoiding tile removal is not necessarily the least expensive or most durable option over the full life of the roof. Concealed defects may remain undetected, and additional coatings can complicate future inspection or repairs. A surface treatment may also be incompatible with the existing tiles, sealants or waterproofing materials.

The decision should be based on the condition of the roof, the extent of the defects, the compatibility of the proposed repair and the consequences of leaving concealed construction unexamined. Where widespread membrane failure, significant structural cracking or extensive deterioration is present, more extensive remedial work may be required.

[edit] Inspection, maintenance and repair planning

Early investigation can help prevent minor defects from developing into more extensive damage. Roof inspections should consider the condition of the covering, flashings, joints, penetrations, drainage components and accessible parts of the underlying construction. Any suspected structural deterioration should be assessed by an appropriately qualified professional.

Repairs should be carried out in accordance with the requirements of the selected system, including surface preparation, application conditions, detailing and curing. Roof access and work at height must be planned safely, and the roof should not be assumed capable of supporting workers or equipment without appropriate assessment.

The service life of a waterproofing treatment cannot be reliably predicted from the material type alone. It depends on design, installation quality, exposure, substrate movement, drainage, maintenance and damage caused by subsequent work. Manufacturer guidance and the specified system's performance information should be used when planning inspections and maintenance.

[edit] Conclusion

Waterproofing a roof without removing existing tiles can be feasible where the tiles and supporting construction are sound and the source of leakage can be addressed through localised repairs or a compatible surface treatment. Transparent coatings, liquid-applied membranes, joint repairs and injection grouting each have specific applications and limitations.

The priority is to identify the cause of water ingress and select a repair suited to the roof construction. Where the underlying waterproofing has failed extensively or concealed defects require investigation, removing tiles may be necessary. Effective drainage, appropriate detailing, sound workmanship and planned maintenance are essential to achieving durable performance.
