Great Mosque of Djenne

[edit] Introduction

The Great Mosque of Djenné is a banco or adobe building located in Mali, on the flood plain of the Bani River. It is the largest mud-brick building in the world, and is considered to be one of the finest examples of the Sudano-Sahelian architectural style.

This style is common to the Sahel and Sudanian grassland regions of West Africa, and is characterised by the use of mud-bricks and adobe plaster, with wooden-log support beams. On large buildings such as the mosque these beams often protrude from the wall face.

As the building is largely open to the elements, it cracks and erodes due to rain, humidity and temperature changes. As a result, local mud masons are regularly required to repair the structure to prevent it from falling disintegrating.

The mosque can accommodate 3,000 worshippers and is one of the most famous architectural landmarks in Africa which, along with the ‘Old Towns of Djenné’, was designated a World Heritage Site by UNESCO in 1988.

[edit] History

The exact date of the first mosque built on the site in the city of Djenné is not known, although it is believed to be between between 1200 and 1330.

In 1834 the original mosque was demolished by order of the conquering Amadou Lobbo, who considered it to be too lavish and palatial. The only surviving portion of the original structure is an enclosure containing the graves of local leaders. The structure was re-built in 1896 but this too was demolished after just a few years.

In 1906, the French administration, who had colonised Djenné, ordered the construction of the current building. The French probably provided funding for the building of the mosque and a nearby madrasa, both of which were completed 1907-1909 using forced labour under the supervision of the head of Djenné’s guild of masons, Ismaila Traoré.

[edit] Architectural design

The mosque’s walls were constructed using ferey (sun-baked earth bricks), as well as sand and earth-blasted mortar. The smooth, sculpted aesthetic is created by a plaster coating. Bundles of toron, or rodier palm sticks protrude some 60 cm (2 ft) from the surface and serve as ready-made scaffolding for the frequent repairs that are necessary.

To prevent the building from flooding due to its proximity to the Bani River, it was built on a platform measuring 75 x 75 m (246 x 246 ft), and raised by 3 m (9.8 ft). Six sets of stairs, each adorned with pinnacles, provide access to the building.

The building plan has a trapezoidal form. Historians have suggested that the position of some of the outer walls follow those of the original mosque, although it is not certain whether the roof-supporting columns do as well.

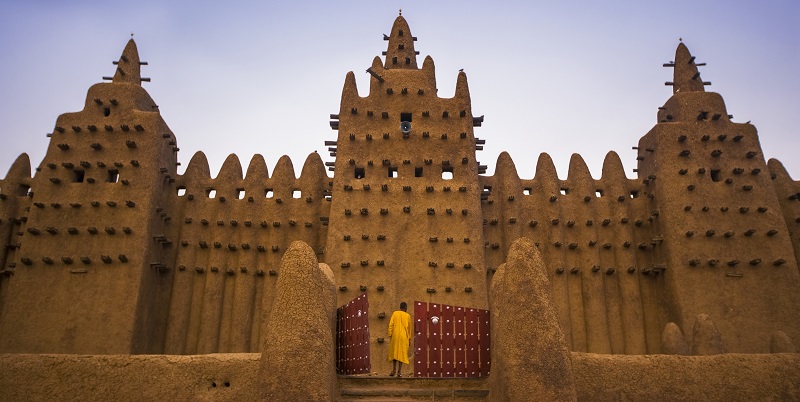

The east-facing qibla (prayer wall) is dominated by three large, box-like minarets which jut out from the main wall. The central tower measures around 16 m tall. At the top of each minaret are cone-shaped spires topped with ostrich eggs.

The prayer hall measures 26 x 50 m (85 x 164 ft), and is supported by 9 interior walls which are pierced by pointed arches, creating 90 massive rectangular pillars which span the interior. The roof is fitted with small vents allowing hot air out of the building. Adjacent to the prayer hall is an interior courtyard surrounded on three sides by galleries, the walls of which are punctuated with arched openings.

[edit] Post-construction

The mosque is regularly maintained, but only minor design changes have taken place since its completion in 1909. The conservation efforts of the local community have been widely praised, with most attempts at modernisation being resisted, other than the installation of a loudspeaker system.

The mosque aroused controversy in 1996 when Vogue magazine held a fashion shoot of scantily-dressed women inside the mosque. As a backlash against this, non-Muslims were banned from entering.

In 2009, after a period of heavy rainfall, the upper section of one of the large towers collapsed, prompting a swift rebuilding effort.

[edit] Related articles on Designing Buildings Wiki

• Angkor Wat.
• Building of the week series.
• Dome of the Rock.
• Earth building.
• Earthen construction.
• El Castillo.
• Golden Temple, Amritsar.
• Hagia Sophia.
• Largest sandcastle in the world.
• Leaning Tower of Pisa.
• Mahabat Maqbara, India.
• Minaret.
• Shah Cheragh, Iran.
• Taj Mahal.
• The British Mosque: an architectural and social history.
• These giant infrastructure projects are set to reshape Africa.

Comments

Greetings, I was briefly in the mosque in 1975. Two elements have stayed with me. The pillars were square and large. The space between the pillars was the same size as the pillars. Spacings of two meter pillars and two meter floor space would would fill the mosque wih 90 units. Take out one row to have open space on the east side, and the pillars become 78. I am not sure about the entry side, but more space seems necesssary. If a row is taken out, the pillars become 72.

A curiosity of 2 x 2m pillars and floor space is that the views were up and down rows.

The size of pillars may be different. The equity of spacing must go with it. I am confident of equal spaces.

Larry
