Arches have been a prominent feature in architecture since the time of the Ancient Greeks. The techniques involved in designing and constructing arches have since developed into many other structural forms, such as vaults, arcades, bridges and so on.
Arches are compressive structures, that is, there are no tensile stresses. They are self-supporting, stabilised by the force of gravity acting on their weight to hold them in compression. This makes them very stable and efficient, capable of larger spans, and supporting greater loads than horizontal beams.
The downward load of an arch must be transferred to its foundations. The outward thrust exerted by an arch at its base must be restrained, either by its own weight or the weight of supporting walls, by buttressing or foundations, or by an opposing tie between the two sides. The outward thrust increases as the height, or rise, of the arch decreases.
The construction of traditional masonry arches is dependent on the arrangement of the bricks, blocks or stone over the opening. Wedge-shaped blocks, called voussoirs, are set flank-to-flank with the upper edge being wider than the lower edge. Downward pressure on the arch has the effect of forcing the voussoirs together instead of apart. The voussoir that is positioned in the centre of the arch is known as the keystone.
This arrangement means that the arch is self-supporting, but temporary supports from below, usually in the form of timber centres, must be provided until the keystone has been set in place.
The interior, lower curve of the arch is known as the intrados. The exterior, upper curve of the arch is known as the extrados. The spring, or springing line, is the point from which the arch starts to rise from its vertical supports.
Most arches are circular, pointed or parabolic, however, there are a great many variations of these basic forms that have developed during different periods. Ancient Roman architects favoured rounded arches, whereas Gothic architects preferred pointed arches.
Some of the most common types of arch are described below.
 Triangular arch
First developed by the Mayans, the triangular arch is formed by two large diagonal stones that span an opening by mutually supporting each other.
 Round arch

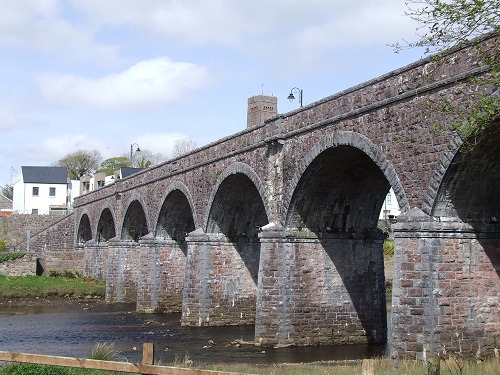

Also known as a semi-circular arch, this is formed in a continuous curve and was developed by the Romans. They were often used side by side in a series to create an arcade. An adaptation is the rampant round arch which has unequal lengths of support on either side.
 Segmental arch
This is an arch that has a rise that is less than a semi-circle. In a flatter form, segmental arches were commonly used for bridges as larger spans are possible without excessively increasing height. Since the flatter the arch gets the more thrust is delivered sideways to the abutments, there bridges require large abutments at either side.
 Lancet arch
This was a form of pointed arch that was developed during the Gothic period. It was often used for windows and roof structures in churches and cathedrals. The arch is tall and narrow with a pointed apex.
 Equilateral arch
Also from the Gothic period, equilateral arches were often used for decorative entrances and windows. The two springing points and the crown of the intrados form an equilateral triangle, meaning that each curve has a chord length equal to the span.
 Camber arch
Also known as a jack arch, a camber arch is similar to a lintel in that it is flat, or almost flat, in profile, however, the voussoirs use their compressive strength in the same way as a regular arch.
 Trefoil arch
The trefoil arch was commonly used in religious buildings, and incorporated the shape of three overlapping rings, known as a trefoil.
 Horseshoe arch

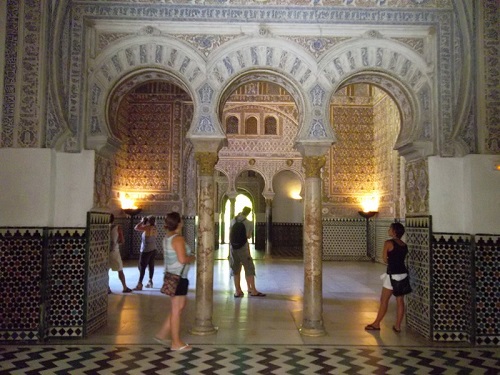

The curves of the horseshoe arch bulge out from the springing points to create a horseshoe profile. They were widely used in Islamic architecture in regions such as Spain and North Africa.
 Three-centred arch
The three-centred arch is similar to the segmental arch but has more than two centres, providing it with an elliptical or oval profile.
 Four-centred arch
The four-centred arch, also known as a Tudor arch or depressed arch, is low and wide with a pointed apex. It is normally much wider than its rise and was commonly used in English architecture.
 Ogee arch
The ogee arch form developed during the English Gothic period and follows a concave arc that flows into a convex arc with pointed crown. It was often used for decorative purposes above doorways.
 Parabolic and catenary arch
A parabolic arch follows the principle that when there is a uniformly applied load from above, the internal compression that results will follow a parabolic curve. Parabolic arches produce the most thrust at the base, but can span the greatest distance, and so are commonly used in bridge design.
A catenary arch looks very similar to a parabola, but is slightly more 'flat' at the bottom, and rises faster than the parabola. The catenary is the solution to a differential equation that describes a shape that directs the force of its own weight along its own curve, so that, if hanging, it is pulled into that shape, and if standing upright it can support itself. The parabola does not have the same property, but is the solution of other important equations that describe other situations.
The Gateway Arch (pictured above) is a catenary arch.
