Top Signs Your Building Needs Structural Retrofitting

[edit] Introduction

Buildings can deteriorate over time due to ageing, environmental exposure, changes in use, inadequate maintenance, material degradation and, in some cases, exceptional events such as flooding, fire or seismic activity. Structural defects that are not identified and addressed at an early stage can compromise safety, increase maintenance costs and reduce the service life of a building.

Structural retrofitting involves modifying or strengthening an existing structure to improve its performance, increase load-bearing capacity, address deterioration or enhance resilience to specific hazards. It may be undertaken in residential, commercial, industrial or historic buildings and is often used to extend the useful life of existing assets.

Recognising the warning signs of structural distress can help building owners and managers identify when a detailed structural assessment may be required.

[edit] Structural retrofitting and its applications

Structural retrofitting encompasses a range of strengthening and repair techniques designed to improve the performance of existing structures. The most appropriate method depends on the condition of the building, the nature of the defects, the intended use of the structure and the recommendations of a qualified structural engineer.

Common retrofitting techniques include:

• Fibre-reinforced polymer (FRP) strengthening.
• Steel jacketing of columns or beams.
• Reinforced concrete or micro-concrete jacketing.
• Beam and slab strengthening.
• Foundation strengthening and underpinning.
• Seismic strengthening measures.
• Concrete repair and re-profiling.
• Shotcrete (sprayed concrete) strengthening.

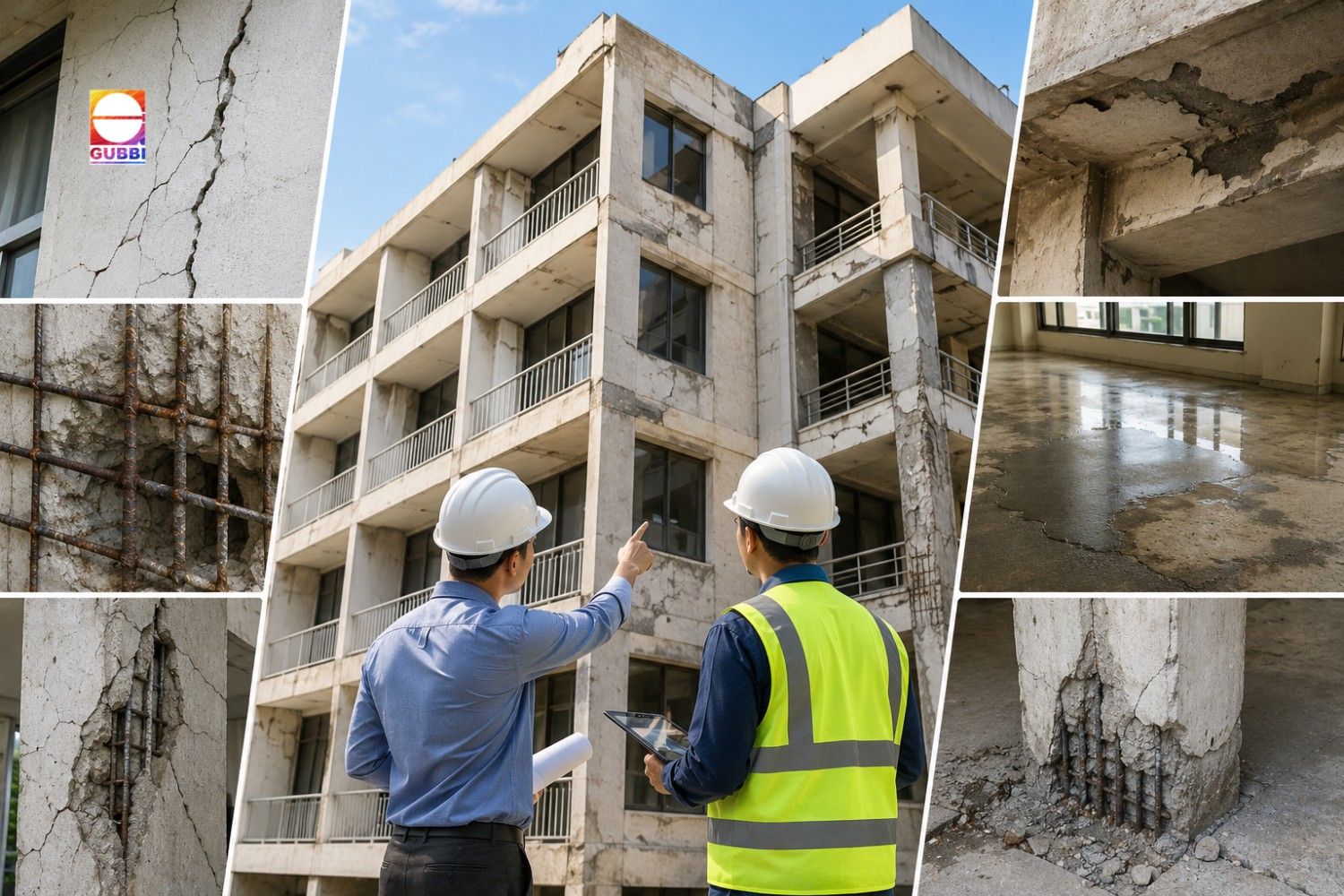

[edit] Signs that a building may require structural retrofitting

[edit] Cracking in structural elements

Cracks in walls, beams, columns or foundations can indicate movement, settlement, overloading or deterioration. While some minor shrinkage cracks may be cosmetic, widening, recurring or significant cracks should be investigated.

Particular attention should be given to:

• Diagonal cracks near openings.
• Cracks in load-bearing walls.
• Cracks in beams and columns.
• Foundation cracks.
• Cracks that increase in width over time.

[edit] Water ingress and damp-related deterioration

Persistent water ingress can significantly affect the durability of structural materials. Moisture may contribute to reinforcement corrosion, concrete degradation, timber decay and deterioration of finishes.

Indicators include:

• Damp patches on walls or ceilings.
• Water penetration through roofs or external walls.
• Concrete spalling.
• Rust staining on concrete surfaces.
• Evidence of prolonged moisture exposure.

[edit] Corrosion of reinforcement

Corrosion of embedded steel reinforcement is a common cause of deterioration in reinforced concrete structures. As corrosion products expand, they can crack and displace surrounding concrete.

Typical signs include:

• Rust staining.
• Delaminated or spalled concrete.
• Exposed reinforcement.
• Reduced concrete cover.
• Localised structural deterioration.

Where corrosion is advanced, strengthening works may be required in addition to repair measures.

[edit] Foundation movement and settlement

Foundation movement can result from changes in ground conditions, poor drainage, nearby excavation works, shrinkable soils or increased structural loading.

Potential indicators include:

• Sloping or uneven floors.
• Distorted door and window openings.
• Gaps between walls and ceilings.
• Differential settlement cracks.
• Misalignment of structural elements.

Structural assessment is often required to determine the extent and cause of movement before remedial measures are designed.

[edit] Reduced structural capacity

Buildings are frequently altered during their lifetime. Additional storeys, heavier equipment, changes of use or increased occupancy may impose loads that exceed the assumptions made in the original design.

Retrofitting may be required where:

• Additional floors are proposed.
• Building use changes significantly.
• Heavy plant or equipment is installed.
• Structural modifications alter load paths.
• Existing elements no longer satisfy current performance requirements.

[edit] Age-related deterioration

Older buildings may experience deterioration due to weathering, material fatigue, chemical attack or outdated construction methods. In some cases, structures may have been designed to standards that differ substantially from current requirements.

Common signs include:

• Surface deterioration of concrete or masonry.
• Structural deflection.
• Material degradation.
• Loss of section in structural members.
• General reduction in structural performance.

[edit] Excessive vibration or movement

Unusual vibration or noticeable movement under normal service conditions may indicate structural deficiencies, excessive loading or deterioration.

Examples include:

• Excessive floor vibration.
• Deflection of beams.
• Movement under pedestrian or machinery loading.
• Noticeable swaying or instability.

Such conditions should be assessed promptly by a suitably qualified professional.

[edit] Fire, chemical or environmental damage

Exposure to fire, aggressive chemicals, industrial pollutants or other environmental hazards can reduce the strength and durability of structural materials.

Following such events, a structural assessment may be required to determine whether repair or strengthening works are necessary to restore structural performance.

[edit] Repeated maintenance and repair issues

Buildings that require frequent repairs may have underlying structural problems that are not being addressed through routine maintenance alone.

Recurring issues can include:

• Repeated crack repairs.
• Ongoing water ingress.
• Persistent concrete deterioration.
• Continuing structural movement.
• Recurring defects in load-bearing elements.

In such circumstances, a more comprehensive structural intervention may be more effective than repeated localised repairs.

[edit] Benefits of structural retrofitting

Structural retrofitting can provide a range of benefits, including:

• Improved structural safety.
• Increased resilience and durability.
• Enhanced load-bearing capacity.
• Extended service life.
• Reduced maintenance requirements.
• Improved performance under extreme loading conditions.
• Adaptation to new uses or occupancy requirements.
• Improved compliance with current standards and performance expectations.

Retrofitting can also contribute to sustainability objectives by extending the life of existing buildings and reducing the need for demolition and reconstruction.

[edit] Conclusion

Early identification of structural deterioration can help prevent more serious defects from developing. Cracking, corrosion, water ingress, settlement, excessive movement and age-related degradation may all indicate that a building requires further investigation.

Where significant structural concerns are identified, a detailed assessment by a qualified structural engineer can determine whether retrofitting or strengthening measures are necessary. Appropriate intervention can improve safety, extend service life and support the continued use of existing buildings.
