[edit] Step-by-Step Shotcreting Process: Complete Guide to Shotcrete Application

The shotcreting process also known as the shotcrete process is a high-performance method of applying concrete or mortar at high velocity onto surfaces. It is widely used in structural repair, slope stabilization, tunneling, and strengthening works.

If you’re searching “how shotcreting is done” or “shotcrete application steps”, this guide explains the complete step-by-step process with technical insights, helping engineers, contractors, and project owners make informed decisions.

[edit] What Is Shotcreting?

Shotcreting is a method where cementitious material is pneumatically projected onto a surface using compressed air. The high velocity ensures:

• Dense compaction
• Strong bond with substrate
• Reduced permeability

Two main methods:

• Dry Mix Shotcrete (Gunite)
• Wet Mix Shotcrete

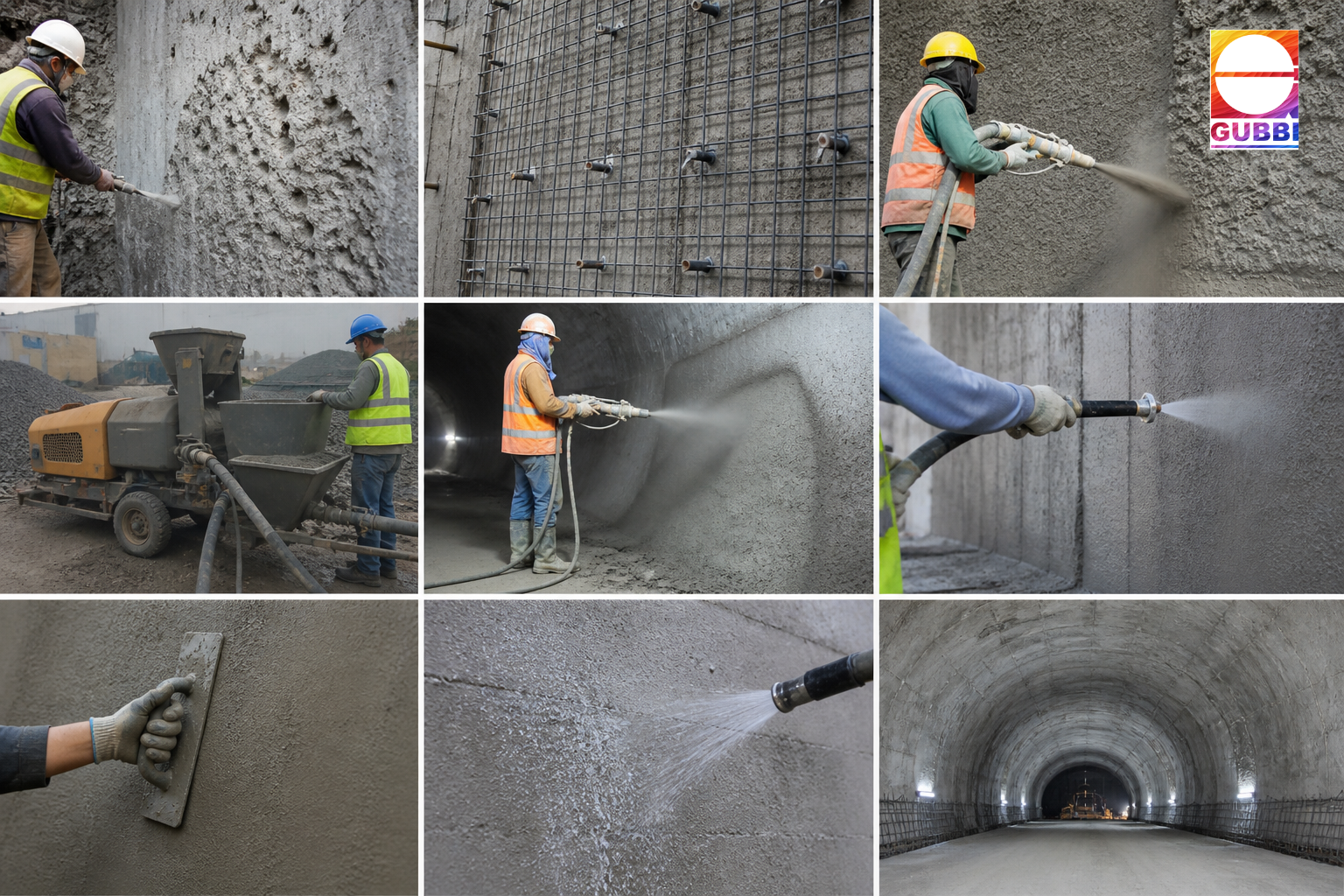

[edit] Step-by-Step Shotcreting Process

1. Surface Preparation (Critical for Bond Strength)

Before shotcreting begins, the surface must be properly prepared.

Key Activities:

• Remove loose concrete, dust, oil, and contaminants
• Use mechanical chipping or hydro-demolition
• Clean with air or water jetting

Technical Note: A roughened surface improves mechanical interlocking, increasing bond strength.

[edit] 2. Installation of Reinforcement (If Required)

For structural applications, reinforcement is added.

Includes:

• Steel mesh or rebar fixing
• Anchoring with shear connectors or dowel bars

Why It Matters: Reinforcement improves:

• Tensile strength
• Crack resistance
• Load-bearing capacity

[edit] 3. Formwork or Guide Setup (Optional)

In some cases, guides or minimal formwork are used to control thickness.

Used In:

• Vertical repairs
• Overhead applications
• Thick structural layers

[edit] 4. Mixing of Shotcrete Material

The mix design depends on application and method.

Components:

• Cement
• Fine & coarse aggregates
• Water
• Admixtures (accelerators, plasticizers)

Technical Terms:

• Water-Cement Ratio (w/c ratio): Controls strength and durability
• Admixtures: Improve workability and setting time

[edit] 5. Shotcreting Application (Core Process)

Concrete is sprayed using a nozzle at high velocity.

Process:

• Material is conveyed through a hose
• Air pressure propels it onto the surface
• Nozzleman controls angle and distance

Best Practices:

• Maintain proper nozzle angle (90° ideal)
• Keep consistent distance (1-1.5 meters)
• Apply in layers (passes)

Technical Term:

• Rebound: Material that falls off the surface and should not be reused

[edit] 6. Layering and Thickness Control

Shotcrete is applied in multiple layers depending on design.

Typical Thickness:

• Repair work: 25-50 mm
• Structural strengthening: 50-100 mm or more

Key Point: Each layer must set properly before the next application.

[edit] 7. Finishing and Surface Treatment

After application, the surface is finished based on requirements.

Methods:

• Trowel finishing
• Screeding
• Textured finish (for slopes/tunnels)

[edit] 8. Curing (Essential for Strength Development)

Proper curing ensures durability and strength.

Methods:

• Water curing
• Curing compounds

Duration: Minimum 7 days recommended

[edit] 9. Quality Control and Testing

To ensure performance, testing is done.

Tests Include:

• Compressive strength test
• Core testing
• Bond strength evaluation

Standards:

Follow guidelines like:

• ACI (American Concrete Institute)
• IS codes (India)

[edit]

[edit] Dry Mix vs Wet Mix Shotcreting Process

[edit] Applications of Shotcreting

The shotcreting process is widely used in:

• Structural repair and rehabilitation
• Tunnel lining and mining
• Slope stabilization
• Swimming pool construction
• Retrofitting of RCC structures

[edit] Advantages of Shotcreting

• High bond strength
• Fast application
• Reduced formwork
• Dense and durable concrete
• Ideal for complex shapes

[edit] Common Problems in Shotcreting

• High rebound loss
• Dust (especially dry mix)
• Improper curing
• Poor surface preparation

[edit] Pro Tips for Better Shotcreting Results

• Always ensure proper surface preparation
• Use experienced nozzle operators
• Maintain correct air pressure and angle
• Avoid rebound reuse
• Follow strict curing practices

[edit] Conclusion

The shotcreting process is a powerful and efficient solution for modern construction and structural repair. When executed with proper technique, materials, and quality control, it delivers long-lasting strength, durability, and performance.

[edit] FAQs

[edit] 1. What is the process of shotcreting?

It involves surface preparation, reinforcement fixing, material mixing, high-velocity spraying, finishing, curing, and quality testing.

[edit] 2. What is the difference between shotcrete and concrete?

Shotcrete is sprayed using air pressure, while conventional concrete is poured.

[edit] 3. Is shotcrete stronger than normal concrete?

Yes, due to better compaction and bonding when applied correctly.

[edit] 4. Where is shotcreting used?

In tunnels, repairs, slopes, swimming pools, and structural strengthening.
