[edit] Aim and benefits

To reduce potable water demand through the installation of energy efficient sanitary fittings, rainwater collection and water recycling systems.

Up to 5 credits are available plus an additional credit for exemplary performance.

[edit] When to consider

Design Stage RIBA Stages 3-4.

[edit] Step by step guidance

Credit Wat 1 is an assessment of the efficiency of the buildings water consumption compared to a baseline performance standard.

Using the BREEAM Wat 1 Calculator Tool the water consumption (litres per person per day) is assessed to suit the building type and credits awarded accordingly.

The following components are included in the assessment and must be included within the calculation where specified in the project:

  • WCs
  • Urinals
  • Taps (wash hand basins and where specified kitchen taps and waste disposal unit)
  • Showers
  • Baths
  • Dishwashers (domestic and commercial sized)
  • Washing machines (domestic and commercial or industrial sized)

If any Rainwater or Greywater recycling systems are proposed details must also be included.

There are two methods to assess the credit:

  1. Standard Method
  2. Alternative Method

[edit] Standard Method

The standard approach is the default method for calculation.

It uses the buildings actual component specification and default usage patterns for the building type and its activity areas. The output is compared with the same output for a baseline component specification and the percentage improvement used to determine the number of BREEAM credits achieved.

The standard building types are:

  • Office
  • Retail
  • Industrial
  • Education

[edit] Alternative Method

If the development does not meet the standard building types the alternative method can be used.

Using the other buildings tab the performance level of each applicable component is assessed. This compares the actual specification for each component type with the table of water efficient consumption levels by component type (Table 36 within the BREEAM manual) to determine the level of performance for each type.

Note that the volumes quoted are maximums for that level and the % WC or urinal flushing demand is a minimum for that level.

[edit] Average Flow Rate Calculator

The Wat 1 Calculator tool has a tab to calculate the average flow if there are various specification types and flow rates for each component type across a development.

[edit] Effective Flush Volume

For WC's this is calculated as follows:

The effective flush volume of a single flush WC is the volume of water used for one flush.

The effective flush volume of a dual flush WC is the ratio of full flush to reduced flush.

This is taken to be one full flush for every three reduced flushes for non-domestic buildings and one full flush for every two reduced flushes in domestic (residential) buildings/areas.

The effective flush volume can therefore be calculated as follows, using a 6/4 litre dual flush volume WC as an example:

Non-domestic:{(6 litre x 1)+(4 litre x 3)}/4 =4.5 litre effective flushing volume

[edit] Questions to ask while seeking compliance

Can the credit be assessed using the standard approach or does the alternative method need to be used?

Has the sanitary ware been selected or specified yet?

Are there any Rainwater or Greywater recycling systems proposed?

Who will be responsible for the specification of the sanitary ware including taps and showers?

If detailed design has not been undertaken can target flow rates and flush volumes be set and included within a performance specification?

[edit] Tools and resources

BREEAM Manual

BREEAM Wat 1 Calculator Tool

[edit] Tips and best practice

This BREEAM issue has minimum standards and at least 1 credit must be scored for this issue for Good, Very Good or an Excellent rating. 2 Credits must be achieved for an Outstanding rating.

Due to the minimum standards this BREEAM issue should be reviewed as soon as possible to ensure the final BREEAM rating can be achieved.

Depending on project procurement the design team may not select the sanitary ware and fittings. In this case it is recommended that the target flow rates and flush rates in order to achieve the required credits are detailed within a performance specification or contractors prelims document to ensure that they are met.

Manufacturers information is generally the best location to find the required flow rates and flush volumes. The design team should provide this information to allow the calculator tool to be completed.

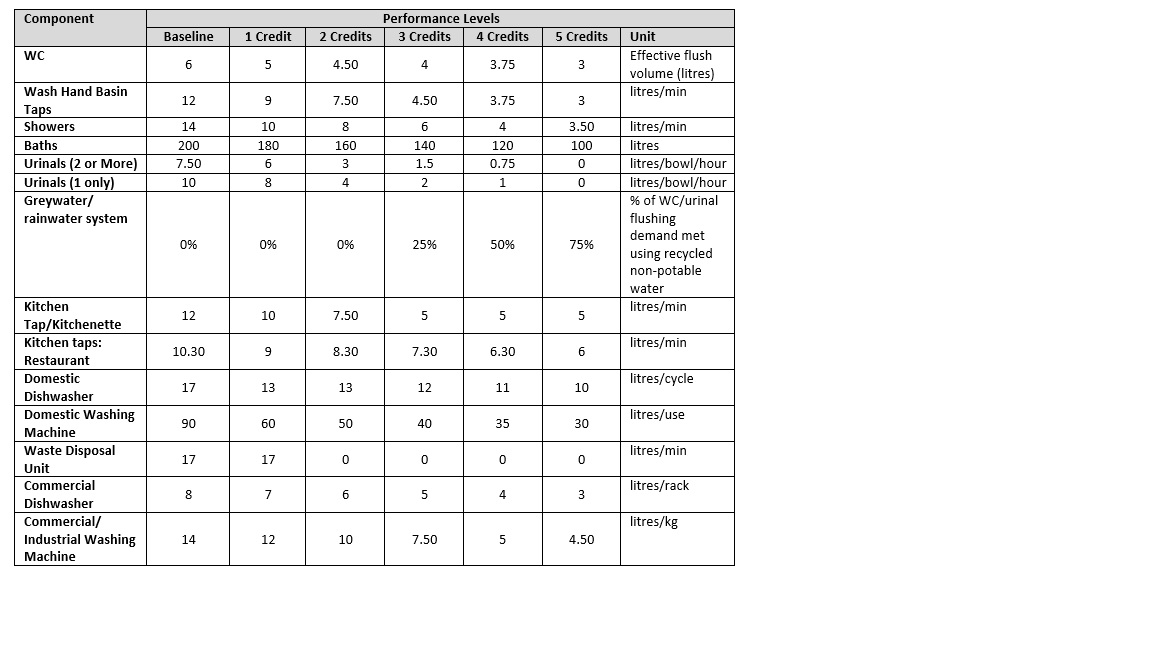

At pre-assessment and early design stage the specification of the sanitary ware may not be complete, an estimation of the likely credits that can be achieved can be calculated with the following tables found within the BREEAM Manual, however a full calculation using the calculator tool should be carried out as soon as the information is available to verify the amount of credits that can be achieved.


[edit] Typical evidence

[edit] Design Stage

BREEAM Wat 1 Calculator Tool

Water Services drawings showing all water consuming equipment

Sanitary ware schedule complete with flow rates and flush volumes

Confirmation any grey or rain water systems are specified and installed to the relevant Building Standards.

[edit] Post Construction Stage

BREEAM Wat 1 Calculator Tool

Water Services drawings showing all water consuming equipment

Sanitary ware schedule complete with flow rates and flush volumes

Manufacturer’s literature for all sanitary ware complete with flow rates and flush volumes

BREEAM assessor survey evidence.

Confirmation any grey or rain water systems are specified and installed to the relevant Building Standards.

[edit] Rainwater and Grey water

The requirements are:

Rainwater: In accordance with BS8515 ‘intermediate approach’:

1. Collection area (m²)

2. Yield co-efficient (%)

3. Hydraulic filter efficiency (%)

4. Rainfall (average mm/year).

Rainwater: In accordance with BS8515 ‘detailed approach’:

1. Daily rainfall collection (litres)

Greywater: in accordance with BS8525 :

1. Manufacturer or system designer details.

2. The percentage volume of waste water collected (and reused)from the following (where relevant); wash hand basins, showers, kitchen basins, dishwashers, baths, washing machines and sources of waste water from non-domestic components.

[edit] Applicable Schemes

The guidelines collated in this ISD aim to support sustainable best practice in the topic described. This issue may apply in multiple BREEAM schemes covering different stages in the life of a building, different building types and different year versions. Some content may be generic but scheme nuances should also be taken into account. Refer to the comments below and related articles to this one to understand these nuances. See this document for further guidelines.
