[edit] Introduction

A truss is a structure that consists of members organised into connected triangles so that the overall assembly behaves as a single object. Trusses are most commonly used in bridges, roofs and towers.

A truss is made up of a web of triangles joined together to enable the even distribution of weight and the handling of changing tension and compression without bending or shearing. The triangle is geometrically stable when compared to a four (or more) -sided shape which requires that the corner joints are fixed to prevent shearing.

Trusses consist of triangular units constructed with straight members. The ends of these members are connected at joints, known as nodes. They are able to carry significant loads, transferring them to supporting structures such as load-bearing beams, walls or the ground.

In general, trusses are used to:

Trusses are typically made up of three basic elements:

  • A top chord which is usually in compression.
  • A bottom chord which is usually in tension.
  • Bracing between the top and bottom chords.

The top and bottom chords of the truss provide resistance to compression and tension and so resistance to overall bending, whilst the bracing resists shear forces.

The efficiency of trusses means that they require less material to support loads compared with solid beams. Generally, the overall efficiency of a truss is optimised by using less material in the chords and more in the bracing elements.

[edit] Types of truss

[edit] Simple truss

This is a single triangle such as might be found in a framed roof consisting of rafters and a ceiling joist.

[edit] Planar truss

A planar truss is a truss in which all the members lie in a two-dimensional plane. This type of truss is typically used in series, with the trusses laid out in a parallel arrangement to form roofs, bridges, and so on.

Long span roof truss.jpg

[edit] Space frame truss

In contrast to a planar truss which lies in a two-dimensional plane, a space frame truss is a three-dimensional framework of connected triangles.


[edit] Truss forms

There are a wide range of truss forms that can be created, varying in materials, overall geometry and span. Some of the most common forms are described below.

[edit] Pratt truss

Also known as an ā€˜Nā€™ truss, this form is often used in long-span buildings, with spans ranging from 20-100 m, where uplift loads may be predominant, such as in aircraft hangers. A Pratt truss uses vertical members for compression and horizontal members for tension. The configuration of the members means that longer diagonal members are only in tension for gravity load effects which allows them to be used more efficiently.

[edit] Warren truss

A Warren truss has fewer members than a Pratt truss and has diagonal members which are alternatively in tension and compression. The truss members form a series of equilateral triangles, alternating up and down.

[edit] North light truss

This form of truss is usually used for short spans in industrial buildings, and is so called because it allows maximum benefit to be gained from natural lighting by the use of glazing on the steeper north-facing pitch (sometimes referred to as a sawtooth roof). It is common, on the steeper sloping portion of the truss, to have a second truss running perpendicular to the plane of the north light truss, providing large column-free space.


[edit] King post truss

Typically made from timber, and spanning up to 8m, king post trusses are commonly used in the construction of domestic roofs. They take the form of a simple triangle, with a vertical member between the apex and the bottom chord.

[edit] Queen post truss

Similar to the king post truss, but with diagonal members between the centre of the bottom chord and each of the inclined top chords, queen post trusses can span 10m.

[edit] Flat truss

The top and bottom chords are parallel, allowing the construction of floors or flat roofs.

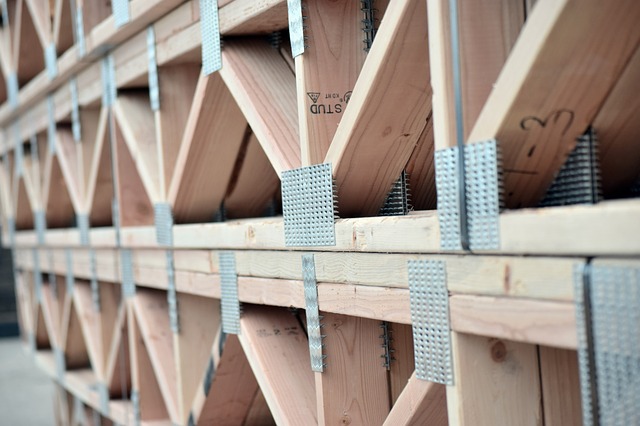

Floor-truss-641787 640.jpg

[edit] Other types of truss:

Other variations include:

  • Howe truss.
  • Scissor roof truss.
  • Hip truss.
  • Bowstring truss.
  • Fan truss.
  • Fink Truss.

[edit] Related articles on Designing Buildings Wiki


So the definition of truss is that it is a structure made by triangles? What about the Vierendeel truss ?

It is arguable whether a Vierendeel truss is a true truss in the strictest definition of the term - and it is certainly not typical of the form of conventional trusses or the forces they resist.
