Types of stain on buildings
Stained glass is a type of glazing material that is intentionally coloured (stained), either by the addition of metallic salts during the manufacturing process, or by having colour applied to its surface and then being fired in a kiln to fuse the colour to the glass. For more information, see Stained glass. Timber can also be stained to alter its appearance.
The severity of unintentional stains depends on the type of material affected. For example, even small stains can cause serious damage to sensitive furnishings such as carpets, curtains and upholstery.
- 'Tide marks’ on walls can be indicators of damp problems, particularly in older buildings which may have been constructed without a damp-proof membrane.
- Pattern staining occurs when a substance settles or emerges on the internal or external surface of a material. There are various causes of pattern staining, such as pollution deposition, salt expulsion, staining from other materials, and so on.
- Algae soiling is a growth on buildings that is caused by organic biological deposition, such as moss and lichens. Usually, these cause damage to building surfaces, and should be rectified.
- In some instances, the appearance of bricks is affected by the development of stains. These may originate from materials in the brick or mortar, from adjacent materials or from outside sources such as cleaning agents. Each has a particular chemical composition and a unique means of removal. Identification of the origin of the stain is the first step in returning brickwork to its proper appearance.
- Stains are often misidentified or mistaken for efflorescence. When correctly identified, efflorescence and stains can generally be removed, whereas inappropriate correction methods may result in further staining or damage to the brickwork.

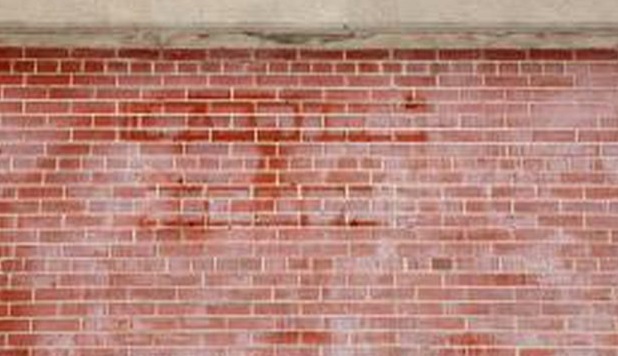

- Lime staining [see top image], also known as lime run-off, describes an effect that can come about when excess water flows through cementatious material. This water can dissolve calcium hydroxide (free lime) which is then deposited on the brick face. The calcium hydroxide is a soluble form of lime which is created as Portland cement hydrates. The initial staining can be removed with water and brushing before it carbonates. Once reaction has taken place, an acid solution will be necessary because the hard crust that forms when the lime has started to carbonate is much harder to remove.
- Vanadium stains: These occur when vanadium oxide and sulfates are dissolved and result in a solution that may be quite acidic.
- Iron staining: Usually appears as a stain to the mortar joint and can come from metal imbedded in the structure.
- Manganese staining: Manifests itself as a dark brown or black staining concentrated along mortar joints.
- White scum: Silicate deposits which appear as uneven white or grey stain on the brick face or mortar joints.
- Acid burn: Unsightly and uneven yellow/gold staining caused by cleaning brickwork with muriatic acid.
- Stains from external sources: Such as pollution, organic growth or runoff. Usually, the source and composition of these stains is obvious. Organic stains can include algae, mould or other organisms.
