Drawing board
Manual drafting of design and construction drawings is generally carried out on a drawing board. The drawing board provides a large flat surface to which paper can be attached using clips or tape for the drawing to be created.
Drawing boards are typically sized to suit standard paper sizes, such as A2, A1, A0 and so on. They can be desk based (sitting on top of an existing desk), fee-standing (on a supporting frame) or integrated with other office fixtures such as filing cabinets.
They are generally inclined, with a mechanism allowing the angle of inclination to be adjusted. They may also have mechanisms allowing the drawing surface to be raised and lowered. They may include a removable mat laid over the board itself that protects the board, provides a suitable surface for supporting paper for drawing, and that can be replaced once it becomes worn, damaged or dirty.

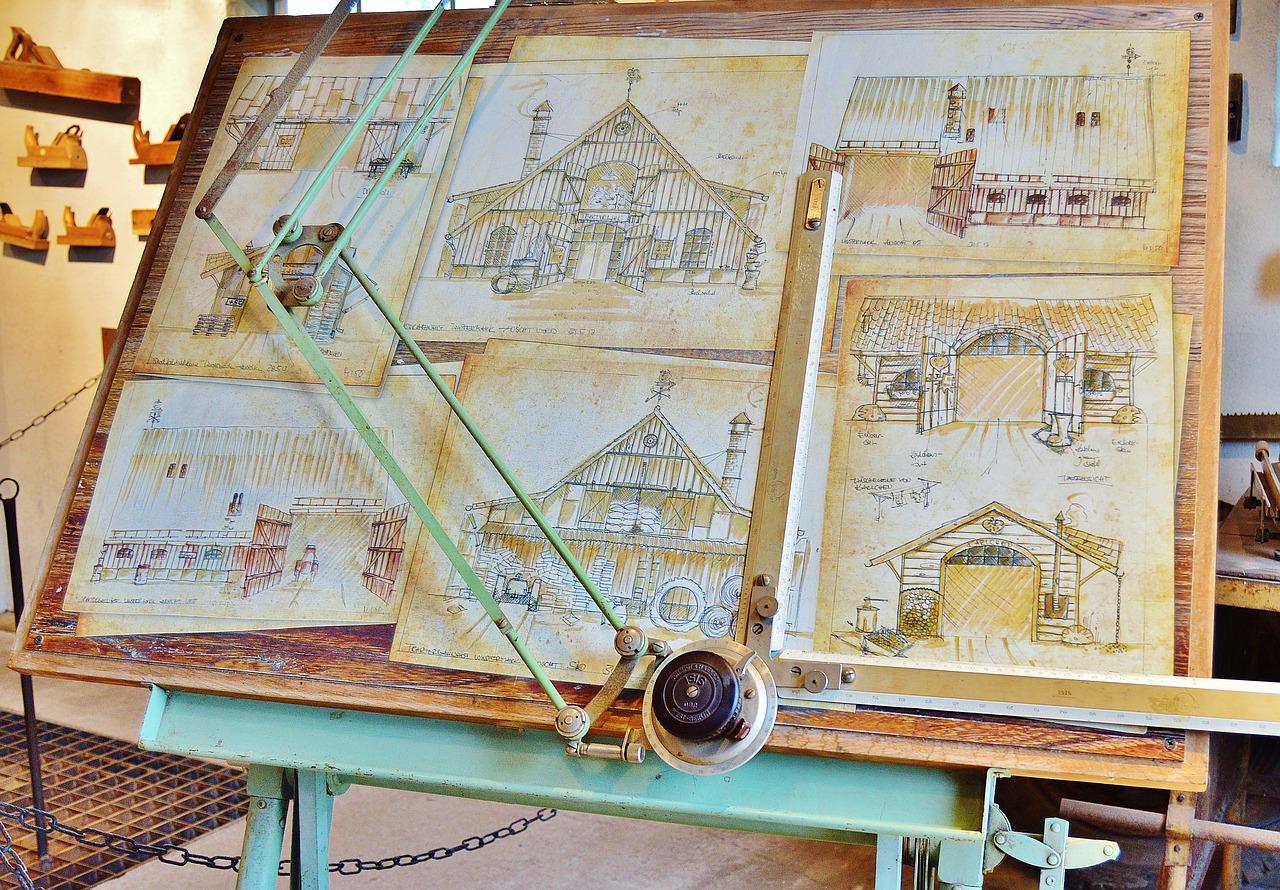

Some drawing boards include a parallel motion. This is typically a horizontal guide that is attached to cables, guides or counterweights at either end that allow it to move up and down along the surface of the drawing board so that lines can be dawn that are parallel to one another. Used in conjunction with set squares or protractors and rules that can slide along the top or bottom edge of the horizontal guide, this allows lines to be drawn at any required angle at any point on the paper.
Some drawing boards have a vertical rather than horizontal parallel motion, and some include complex arrangement of connected arms or rules fixed to the board that allow lines of any angle to be drawn.
They may also include lighting, such as an adjustable angle poise lamp that illuminates the drawing.
Less expensive drawing boards may use a T-square to achieve a similar result. T-squares are T-shaped guides that are not fixed to the drawing board. The head of the T-square is pushed against the edge of the drawing board and the edge of the blade can then be used to draw lines parallel to the edge of the drawing board.
