Engineered timber
Contents |
[edit] What is engineered timber?
‘Engineered timber’, also known as 'Mass timber', relates to wood-based composite materials. Typically, solid softwood is processed in a factory, combined with other materials (for example adhesives) and formed into a new material. These engineered timber products combine all the positive attributes of timber, for example strength, weight, sustainability etc, while removing some of the negative attributes, such as variability, stability and limited section sizes.
[edit] Is engineered timber better than natural timber?
Although timber is a strong, flexible, structural material it is also a natural material and so the strength properties can vary significantly based on features of the tree.
Engineered timber products help to overcome these issues by processing the timber and removing some of the variability of the natural material. Solid timber can be converted to particles, strands or laminates which can be combined with other materials, such as glues, to form composite wood products.
The principal reasons for transforming wood into engineered timber products include to:
- Transcend the dimensional limitations of sawn wood.
- Improve performance, structural properties, stability or flexibility
- Transform the natural material into a homogenous product.
- Utilise low-grade material, minimise waste and maximise the use of a valuable resource.
[edit] What are the advantages of engineered timber products?
The advantages of engineered timber products include:
- improved structural properties and dimensional stability
- large sections and lengths
- reduced overall wastage of the timber resource
- less material variability aesthetic variety utilisation of logs unsuitable for conversion to sawn timber.
In addition, the products are produced at low moisture contents therefore reducing the risk of movement due to drying in service in internal environments.
Since structural timber composites are factory produced, the only constraints on length and section size are the practicalities of transportation and handling. This offers many advantages to structural engineers. For example, long span/double spanning engineered I-joists can be used in the construction of multi-storey timber framed buildings. These long, multiple span I-joists help to improve the disproportionate collapse design of the building, making construction of the buildings more simple and cost effective.

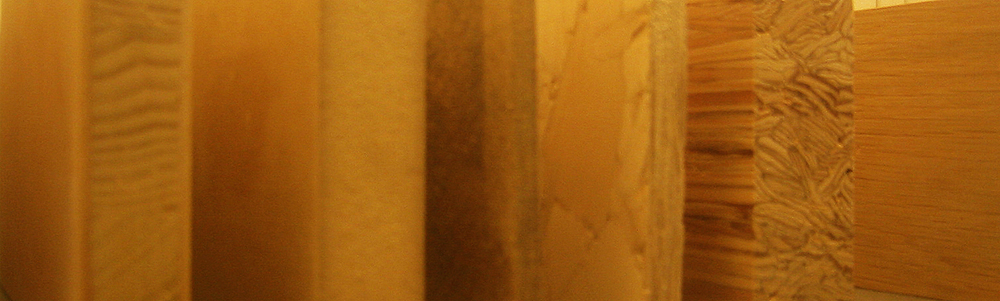

[edit] What are the types of engineered timber products?
Engineered timber products include layed composites which are considered structural timber solutions. Their properties are consistent and they are typically stronger and longer spanning than solid timber sections:
Engineered timber products can also include particle composites such as:
- Parallel strand timber
- Particle boards
- Orientated strand board (OSB)
--Timber Development UK 16:52, 14 Dec 2022 (BST)
