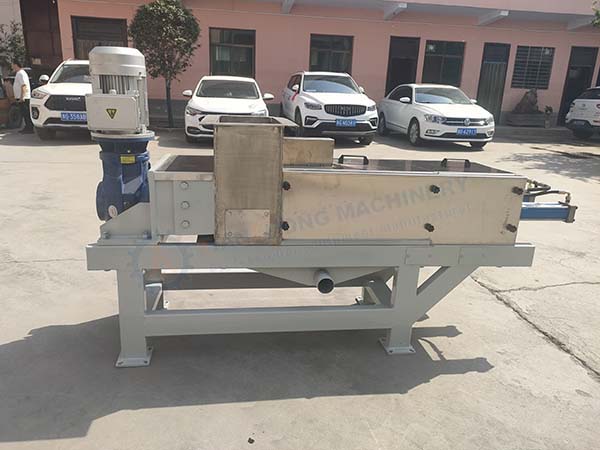

Screw Press Dewatering Machine

1 Introduction
2 Structure of the Screw Press Dewatering Machine
3 Working Principles of the Screw Press Dewatering Machine
4 Applications
5 Advantages:
6 Related articles on Designing Buildings

[edit] Introduction

The screw press dewatering machine is a widely used solid-liquid separation device that efficiently separates liquids from a mixture by harnessing the rotational motion of a screw.

[edit] Structure of the Screw Press Dewatering Machine

The main components of a screw press dewatering machine include the feed inlet, screw shaft, screw blades, discharge outlet, driving mechanism, and base. Here's a detailed description of each component:

Feed Inlet: The feed inlet is where the mixture enters the interior of the screw press dewatering machine, preparing for the solid-liquid separation process.
Screw Shaft: The screw shaft is a crucial component of the machine responsible for driving the rotation of the screw blades, thus facilitating the movement of the mixture within the equipment.
Screw Blades: Screw blades are positioned along the screw shaft, designed in a way that, as the screw shaft rotates, they gradually push the mixture towards the discharge outlet. The shape and angle of the screw blades can influence the dewatering efficiency.
Discharge Outlet: At the bottom of the screw press dewatering machine, there is a discharge outlet. Separated solid particles exit from here, while the remaining liquid is expelled from the machine.
Driving Mechanism: The driving mechanism typically consists of an electric motor, a reducer, and couplings. These components provide the power needed to rotate the screw shaft, driving the motion of the screw blades.
Base: The base serves as the support structure for the screw press dewatering machine, ensuring overall equipment stability and safety.

[edit] Working Principles of the Screw Press Dewatering Machine

The functioning of the screw press dewatering machine relies on the action of screw compression. When the mixture enters the machine through the feed inlet, the rotational movement of the screw shaft causes the screw blades to gradually push the mixture towards the machine's discharge outlet. During this process, owing to the design of the screw blades and the rotation of the screw shaft, solid particles experience centrifugal force, which propels them towards the machine's inner wall. Meanwhile, gravity causes the liquid to flow through the channels formed by the screw blades and be expelled from the machine.

The angle and shape of the screw blades play a pivotal role in the efficiency of solid-liquid separation. A smaller angle compresses solid particles, enhancing separation efficiency, while a larger angle allows the mixture to be easily pushed towards the discharge outlet, albeit potentially compromising the effectiveness of solid-liquid separation.

Furthermore, the driving mechanism of the screw press dewatering machine provides sufficient power to ensure the smooth rotation of the screw shaft and blades, enabling a seamless solid-liquid separation process.

[edit] Applications

The screw press dewatering machine is a versatile and indispensable tool in various industries, thanks to its ability to efficiently separate solids from liquids. Some of its prominent applications include:

Wastewater Treatment: In municipal and industrial wastewater treatment plants, these machines are used to dewater sludge and remove excess water, reducing the volume of waste and facilitating disposal. This process also yields a drier, more manageable sludge cake for disposal or further processing.
Agriculture: The machine is used in agriculture to separate liquid from manure and other organic materials. This produces nutrient-rich organic solids that can be used as fertilisers while reducing the environmental impact of excess liquid runoff.
Food Processing: Food and beverage industries use screw press dewatering machines to extract liquids from various food products, such as fruits, vegetables, and dairy products. It helps in reducing waste and increasing the yield of valuable product components.
Pulp and Paper Industry: These machines are employed for paper pulp dewatering, reducing the moisture content and enhancing the quality of paper products.
Chemical and Pharmaceutical Industries: They use these machines to separate solids from chemical mixtures, producing high-quality chemicals and pharmaceutical compounds.

[edit] Advantages:

Efficiency: Screw press dewatering machines are known for their high dewatering efficiency. They can effectively separate solids from liquids, producing a dry cake and clear filtrate.
Continuous Operation: These machines can operate continuously, making them suitable for large-scale industrial processes where a consistent flow of solids and liquids needs to be processed.
Space-Efficient: Screw press dewatering machines have a compact design, making them ideal for applications with limited space.
Low Energy Consumption: They typically require lower energy consumption compared to other dewatering methods, making them more cost-effective in the long run.
Reduced Environmental Impact: By reducing the volume of waste and sludge, these machines contribute to environmental sustainability by lowering disposal costs and minimising the environmental footprint.

In conclusion, the screw press dewatering machine is a valuable and versatile tool used in various industries for solid-liquid separation. Its efficiency, compact design, and environmental benefits make it a preferred choice for many applications. However, it is essential to consider proper maintenance, operating parameters, material compatibility, and safety when using these machines to ensure optimal results and safety in the workplace.
