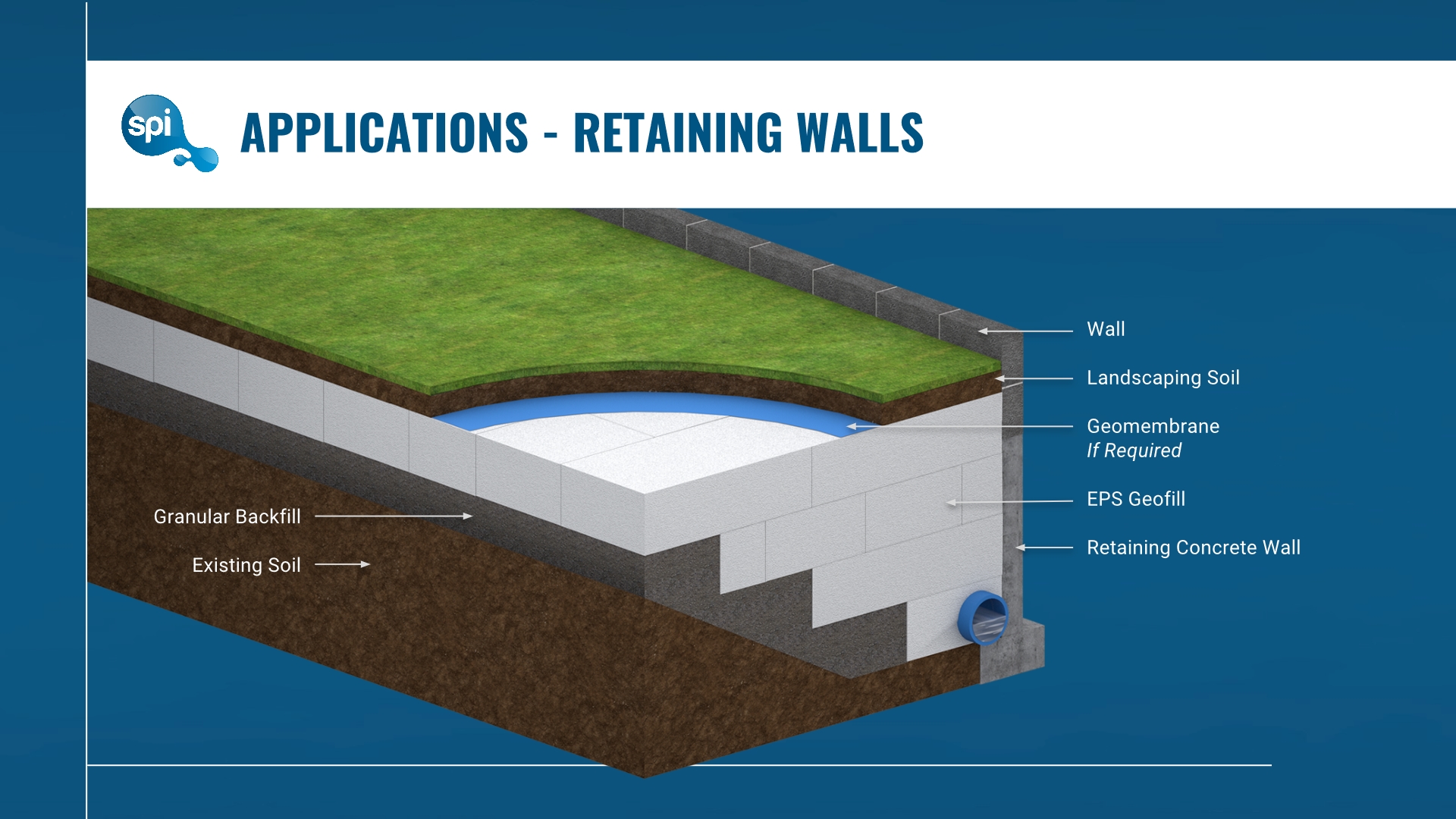

[edit] Stylite EPS Geofill Applications - Retaining Walls
[edit] Stylite EPS Geofill is ideal as a lightweight backfill where a retaining wall is to be built. Because EPS Geofill is so light the lateral pressures imposed on the retaining wall are significantly less than what would otherwise be the case with a traditional backfill such as soil.
This in turn means that the retaining wall does not need to be designed to withstand such high pressures if the backfill soil in the active zone behind the retaining wall is replaced with EPS Geofill. This design approach can therefore result in savings in the cost of the structure itself.
In retaining wall applications, adequate drains should be provided to prevent the development of hydrostatic pressure and uplift due to buoyancy for sites with shallow groundwater and loose soils.
[edit] Key Benefits of EPS Geofill
• Lightweight compared to other fills
• High compressive strength
• Easy to install and cut on-site
• Lower overall cost of construction
• Reduced loads on underlying ground
• Reduced construction programmes
• Available in standard or bespoke blocks
• Minimal water absorption & permeability
• Resistant to rot & durable
• 100% recyclable
